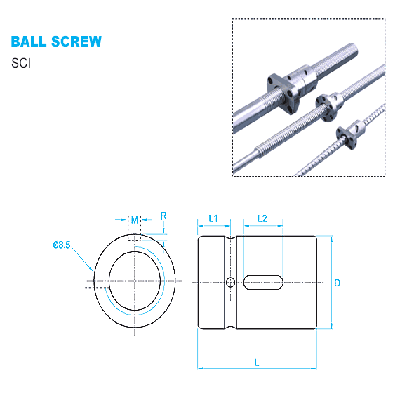

| l: Lead Da: Ball Dia. n: Number of circuits K: Stiffness (kgf/µm) Ca: Basic Dynamix Rating Load (kgf) Coa: Basic Static Rating Load (kgf) |
||||||||||||||
| Model No. |
Dimensions
|
|||||||||||||
|
d
|
l
|
Da
|
D
|
L
|
L1
|
L2
|
M
|
R
|
n
|
Ca
|
Coa
|
K
|
||
| SCI-1604 |
16
|
4
|
2.381
|
30
|
40
|
9
|
15
|
3
|
1.5
|
4
|
640
|
1340
|
16
|
|
| SCI-1605 |
5
|
3.175
|
30
|
45
|
9
|
20
|
5
|
3
|
4
|
780
|
1790
|
20
|
||
| SCI-2004 |
20
|
4
|
2.381
|
34
|
40
|
9
|
15
|
3
|
1.5
|
4
|
670
|
1480
|
25
|
|
| * | SCI-2005 |
5
|
3.175
|
34
|
45
|
9
|
20
|
5
|
3
|
4
|
1130
|
2380
|
25
|
|
| SCI-2504 |
25
|
4
|
2.381
|
40
|
40
|
9
|
15
|
3
|
1.5
|
4
|
760
|
1950
|
31
|
|
| * | SCI-2505 |
5
|
3.175
|
40
|
45
|
9
|
20
|
5
|
3
|
4
|
1280
|
3110
|
35
|
|
| SCI-2510 |
10
|
4.762
|
46
|
85
|
13
|
30
|
5
|
3
|
4
|
1944
|
3877
|
33
|
||
| SCI-3204 |
32
|
4
|
2.381
|
46
|
40
|
9
|
15
|
3
|
1.5
|
4
|
860
|
3050
|
40
|
|
| * | SCI-3205 |
5
|
3.175
|
46
|
45
|
9
|
20
|
5
|
3
|
4
|
1450
|
4150
|
40
|
|
| SCI-3210 |
10
|
6.35
|
54
|
85
|
13
|
30
|
5
|
3
|
4
|
3390
|
7170
|
40
|
||
| * | SCI-4005 |
40
|
5
|
3.175
|
56
|
45
|
9
|
20
|
5
|
3
|
4
|
1610
|
5330
|
49
|
| * | SCI-4010 |
10
|
6.35
|
62
|
85
|
13
|
30
|
5
|
3
|
4
|
3910
|
9520
|
50
|
|
| SCI-5010 |
50
|
10
|
6.35
|
72
|
85
|
13
|
30
|
5
|
3
|
4
|
4450
|
12500
|
65
|
|
| * | SCI-6310 |
63
|
10
|
6.35
|
85
|
85
|
13
|
30
|
6
|
3.5
|
4
|
5070
|
16600
|
80
|
| * | SCI-8010 |
80
|
10
|
6.35
|
105
|
85
|
13
|
30
|
8
|
4.5
|
4
|
5620
|
21300
|
90
|
